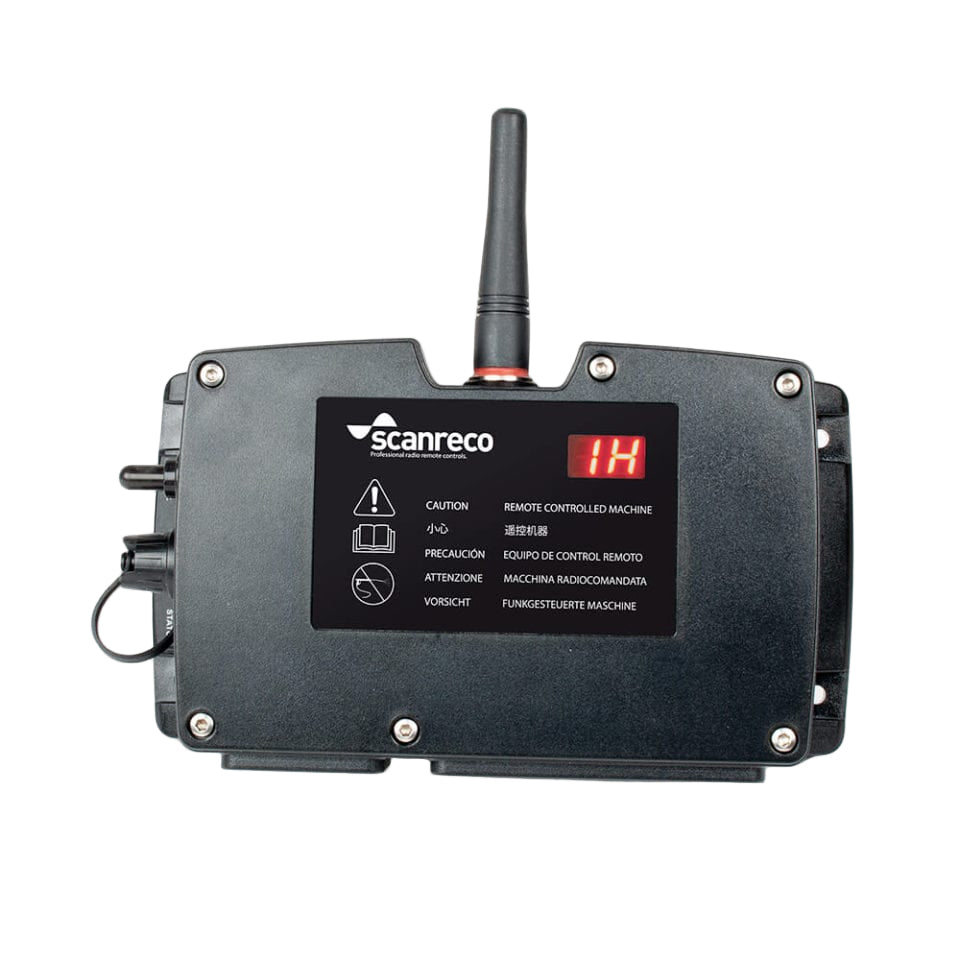

G2 Receiver

The Scanreco G2 Receiver has proportional outputs, digital I/Os as well as CANopen communication. It also has several interface options and flexible software settings that make the G2 Receiver suitable for all types of mobile hydraulic applications.

Specifications

• Protection category: IP 65
• Stop function in accordance with EN ISO 13849-1 cat. 3, PL d
• Frequency bands: 433-434, 902-928MHz or 2.4GHz (other frequencies available on request)
• Operational temperature: -25¡C to +70¡C / ~-15¡F to +160¡F
• Supply voltage: 12/24 VDC
• Dimensions (W x H x D): 233 x 205 x 77 mm / ~9.17 x 8.07 x 3.03 in (height incl. antenna)
• Weight: 1.2 kg / ~2.6 lbs.
• CANopen interface
• 8 bi-directional proportional outputs
• 14 digital outputs (including dump valve)
• 3 digital inputs + 1 configurable digital in or output
• Two-way communication
• Cable control: Standard length 10 meters / ~33 ft.
