Angle Sight – Inclinometer

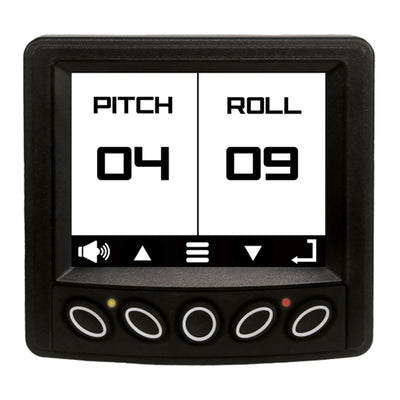

Macquarrie’s Dual – Axis Inclinometer provides configurable pitch and roll measurements via an industrial grade, transflective monochrome display for superior visibility.

Tough & Rugged

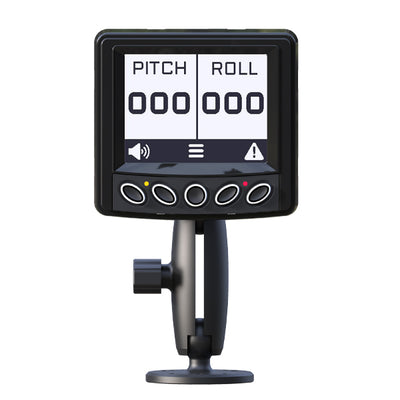

Designed with harsh industrial environments in mind, the display is encased in a rugged, weatherproof fascia, with an adjustable gimbal mount for optimum positioning for operators.

Customisability

The integrated keypad allows for easy customisation of the display settings including warning and alarm setup, minimum and maximum tilt range and sensor customisation.

Warnings & Alarms

Integrated Alarm and Warning Outputs provide a switched, low side signal. Both Warnings and Alarms can be configured to be normally on or normally off outputs.

Password Protected

Optional password protection on the display menu can be configured by the user.

Features:

• 3.8 inch, 320 x 240 pixel, Monochrome LCD Display
• Includes adjustable, gimbal mount kit
• Includes 2 axis, high accuracy tilt sensor with 15m cable
• 2 x Low Side Outputs for Warnings & Alarms
