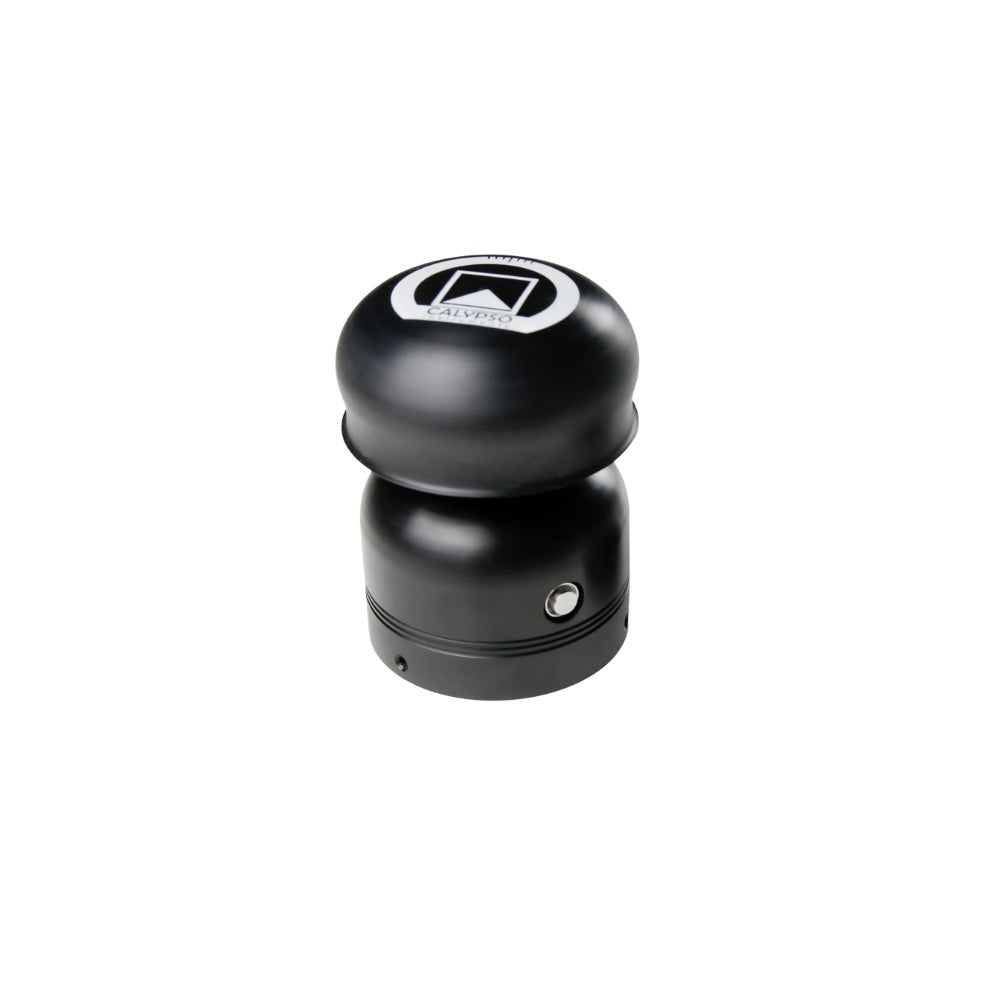

ULTRA-LOW-POWER LORA ULTRASONIC WIND METER

MPN: CMI1064

Wireless. Long-Range. Battery Powered. Built for Remote Environments.

The Ultra-Low-Power (ULP) LoRa Ultrasonic Wind Meter is a compact, battery-powered anemometer designed for long-range wind speed and direction monitoring. Utilising Bluetooth Low Energy (BLE) and LoRa (Long Range) wireless technology, it transmits data up to 1.86 miles (3 km), making it ideal for remote locations where traditional infrastructure is unavailable. Compatible with iOS, Android, and Garmin watches, the ULP LoRa is easy to install, simple to operate, and engineered for reliable performance in diverse outdoor environments.

*Receiver not included.

Wireless & Battery Powered

Thanks to its Bluetooth connectivity and QI wireless charging capability, the LoRa offers total cable-free operation. Recharge it effortlessly using any USB-connected wireless charging pad.

Key Features

• Compact & Portable: Lightweight, field-ready design for remote use.
• Long-Range Connectivity: Sends data wirelessly up to 3 km via LoRa.
• BLE + App Support: Pairs with the free Anemotracker App (iOS, Android, Garmin).

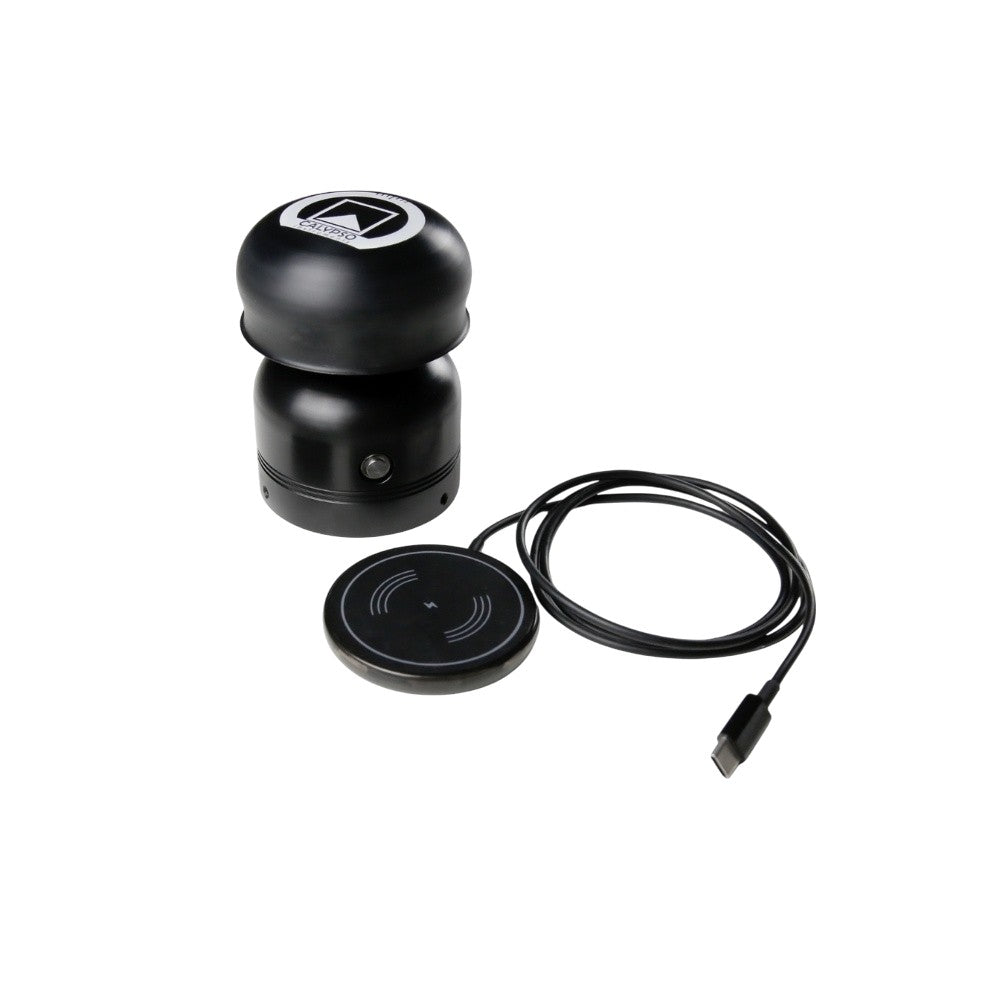

• Battery-Powered & Wireless Charging: Rechargeable using any QI wireless pad connected via USB.
• Tripod Mountable: Standard 1/4″ female thread for flexible mounting options.
• No Infrastructure Needed: Ideal for remote wind monitoring without cables or local networks.
• Multi-Industry Use: Perfect for marine, golf, ballistics, and wind energy applications.

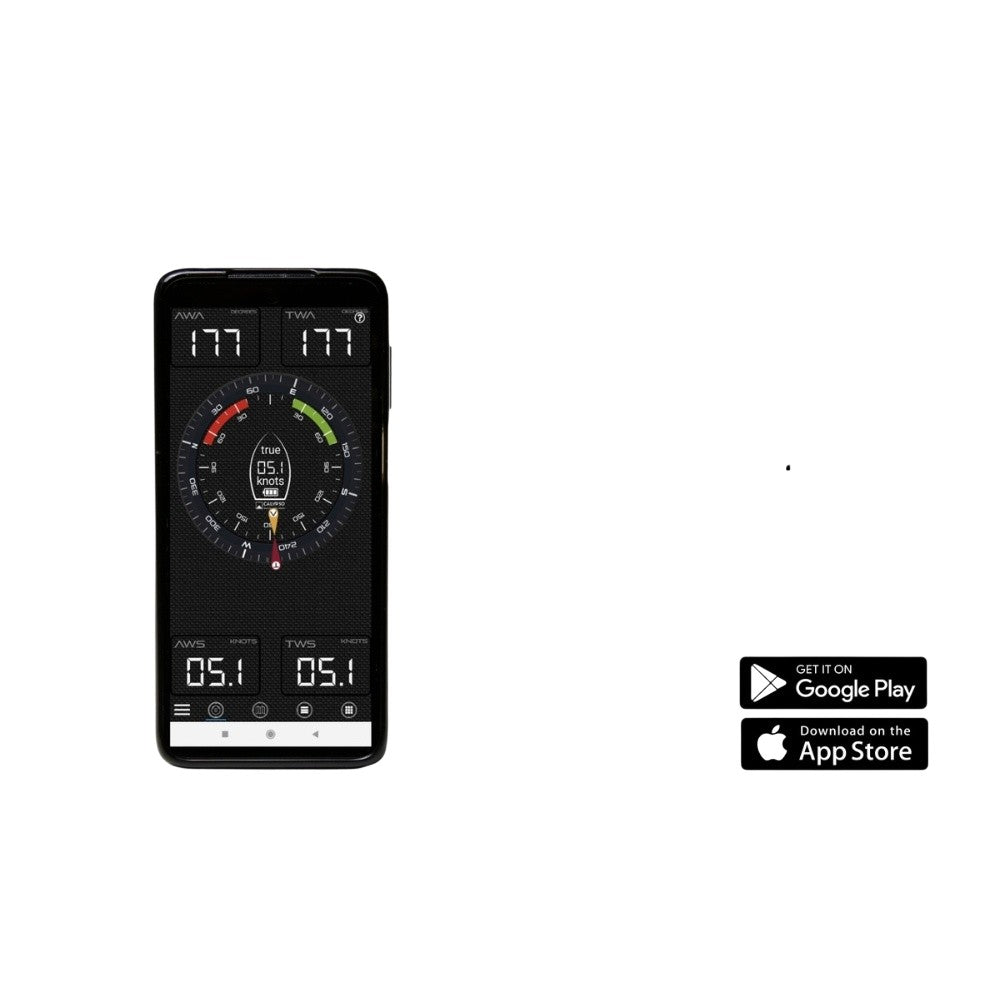

Free Anemotracker App

The Anemotracker app is available for free and provides real-time wind speed and direction data. It is compatible with both the Ultrasonic Portable Mini and Ultrasonic Portable Solar anemometers. Available for download for iOS, Android, Garmin Connect IQ

Technical Specifications

• Material: Nylon polymer
• Dimensions: Diameter: 70 mm, Height: 95 mm
• Weight: 213 grams
• Wind Speed: Range: 0.5 – 25 m/s, Accuracy: ±0.3 m/s, Threshold: 0.5 m/s
• Wind Direction: Range: 0 – 359º, Accuracy: ± 1
• Wind Information: Apparent and real wind speed & direction via App.
• Sensors: Ultrasonic transducers (4x)
• Sample Rate:1 Hz
• Power: 3 – 5V DC, Battery powered (Wireless charging QI)
• Battery Runtime: 50 hours of active use
• Data Output: LoRa P2P (up to 3km direct line of sight), Bluetooth 5.1
• Bluetooth Range: Up to 30 m
• Firmware: Upgradable via Bluetooth
• IP Code: IPX8 protection grade
• Mount: Tripod mount – female thread screw

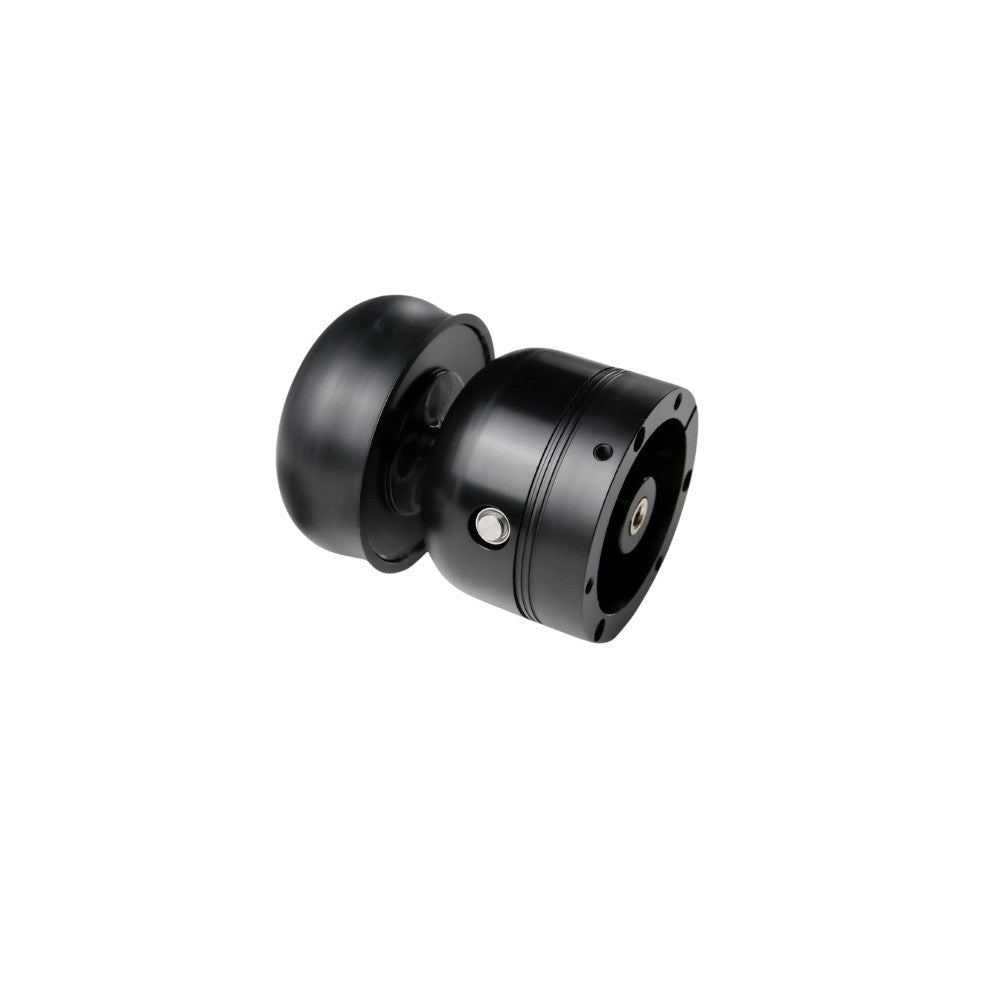

  • Base: 3 x M3 female tripod threads, 3 × M4 female threads (UNC 1/4″-20 – tripod-compatible)
  • Side: 3 x M4 female threads (UNC 1/4″-20)
• Compatibility: Android & IOS devices, tablets, Garmin watches
