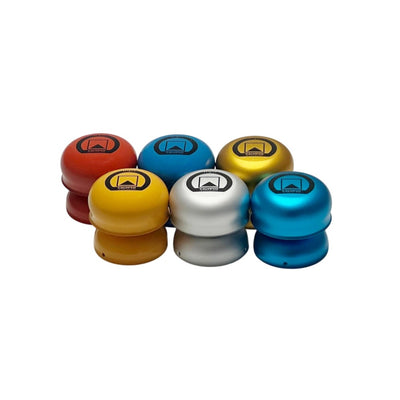

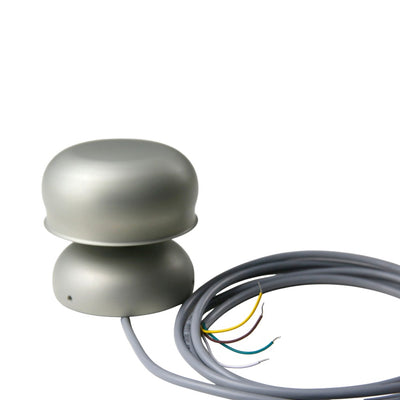

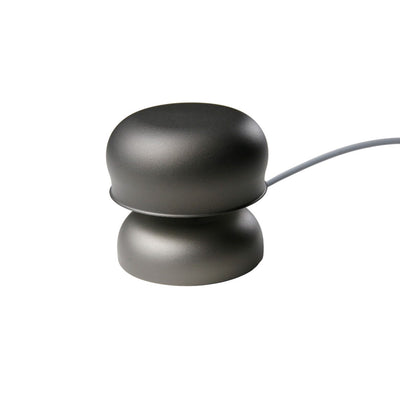

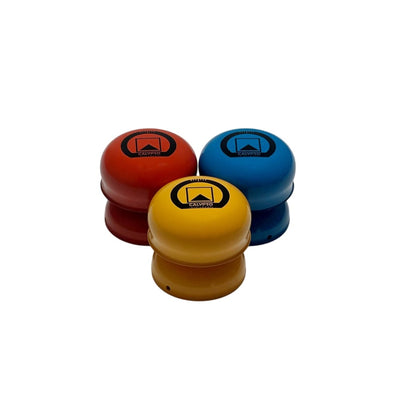

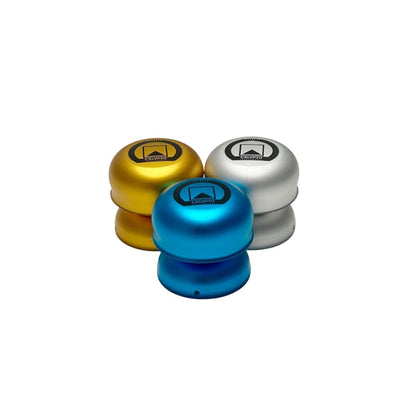

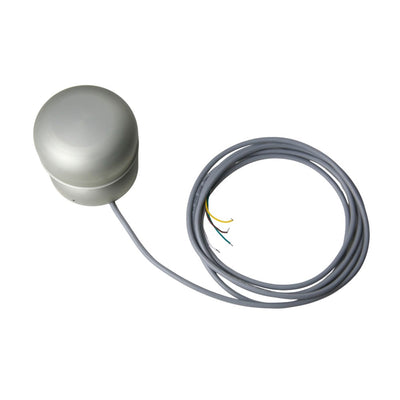

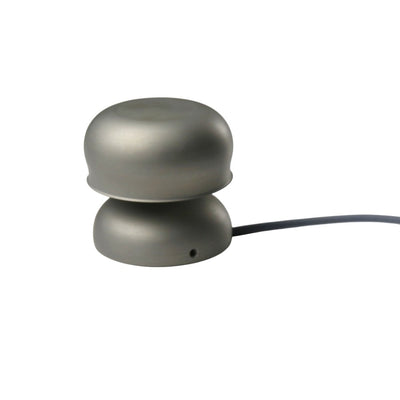

ULTRA-LOW-POWER ULTRASONIC WIND METER SUMMIT (ULP SUMMIT)

MPN (ULP SUMMIT 45m/s w RS485 / MODBUS): CMI1030

MPN (ULP SUMMIT 45m/s w UART/12c): CMI1041

MPN (ULP SUMMIT 60m/s w RS485 / MODBUS): CMI1074

MPN (ULP SUMMIT 60m/s w UART/12c): CMI1075

Built with ULTRASONIC sensors, with no moving parts to make it robust and dependable, the Ultrasonic Ultra-Low-Power Pro (ULP PRO) is a wind meter that measures both speed and direction, allowing data logging via a free app.

The ULP represents a new generation of ultrasonic wind meters. Both shape and firmware have been enhanced for an improved rain performance, being this point key for static applications such as weather stations.

Mechanical design has been revamped making the unit more robust and dependable.

RS485 MODBUS

The 485 Modbus product can provide 1-minute, 5-minute, and 10-minute averages, as well as the maximum gust recorded.

Technical Specifications

• Material: Anodized machined aluminium
• Dimensions: Diameter: 70 mm, Height: 65 mm,
• Weight: 340 grams
• Wind Speed: Range: 0.5-45 m/s, Accuracy: ±0.1 m/s
• Wind Direction: Range: 0-359º, Accuracy: ± 1
• Wind Information: Apparent wind speed & direction
• Sensors: Ultrasonic transducers (4x)
• Sample rate: 1 Hz to 10 Hz (configurable)
• Power: 3-18 VDC
• Firmware: Upgradable via configuration tool
• IP Code: IPX8

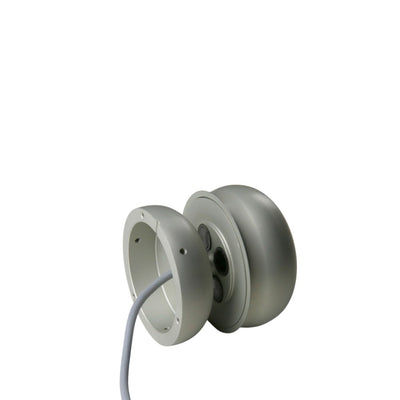

• Mount: 2 x M3 lateral female tripod thread (UNC1/4''-20), 3 x M3 inferior lateral female tripod thread (UNC1/4''-20)
• Data Output
  • RS485 (NMEA 0183) Poll / Stream
  • RS485 (MODBUS)
  • UART (NMEA 0183) Poll / Stream
