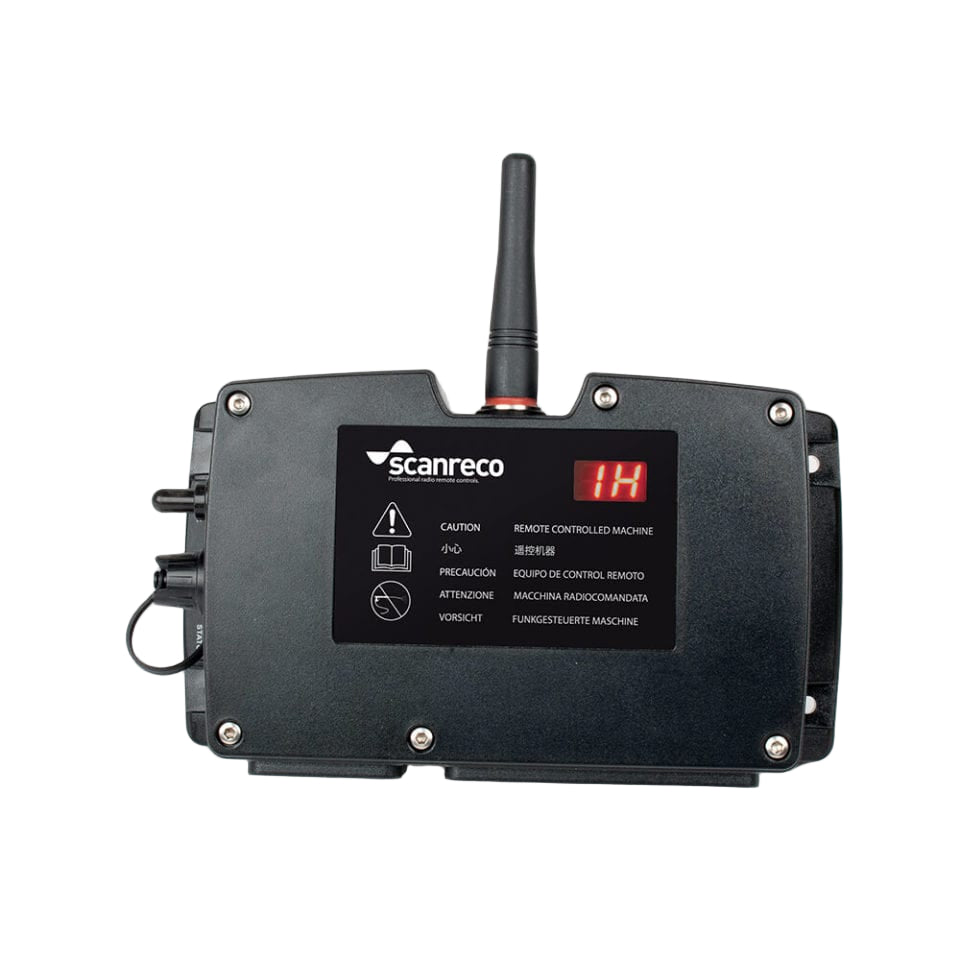

G4 Receiver

The Scanreco G4 has impressive six bi-directional proportional PWM outputs and seven digital outputs (including dump valve). In addition to the outputs, there are two digital inputs for speed-setting management and the CANopen interface.

Specifications

• Protection category: IP 65
• Stop function in accordance with EN ISO 13849-1 cat. 3, PL d
• Frequency bands: 433-434 or 902-928MHz
• Operational temperature: -25¡C to +70¡C / ~-15¡F to +160¡F
• Supply voltage: 12/24 VDC
• Dimensions (W x H x D): 233 x 205 x 77 mm / ~9.17 x 8.07 x 3.03 in (height incl. antenna)
• Weight: 1.2 kg / ~2.6 lbs.
• 6 bi-directional proportional PWM outputs
• 7 digital outputs (including dump valve)
• 2 digital inputs for speed-setting management
• CANopen interface
