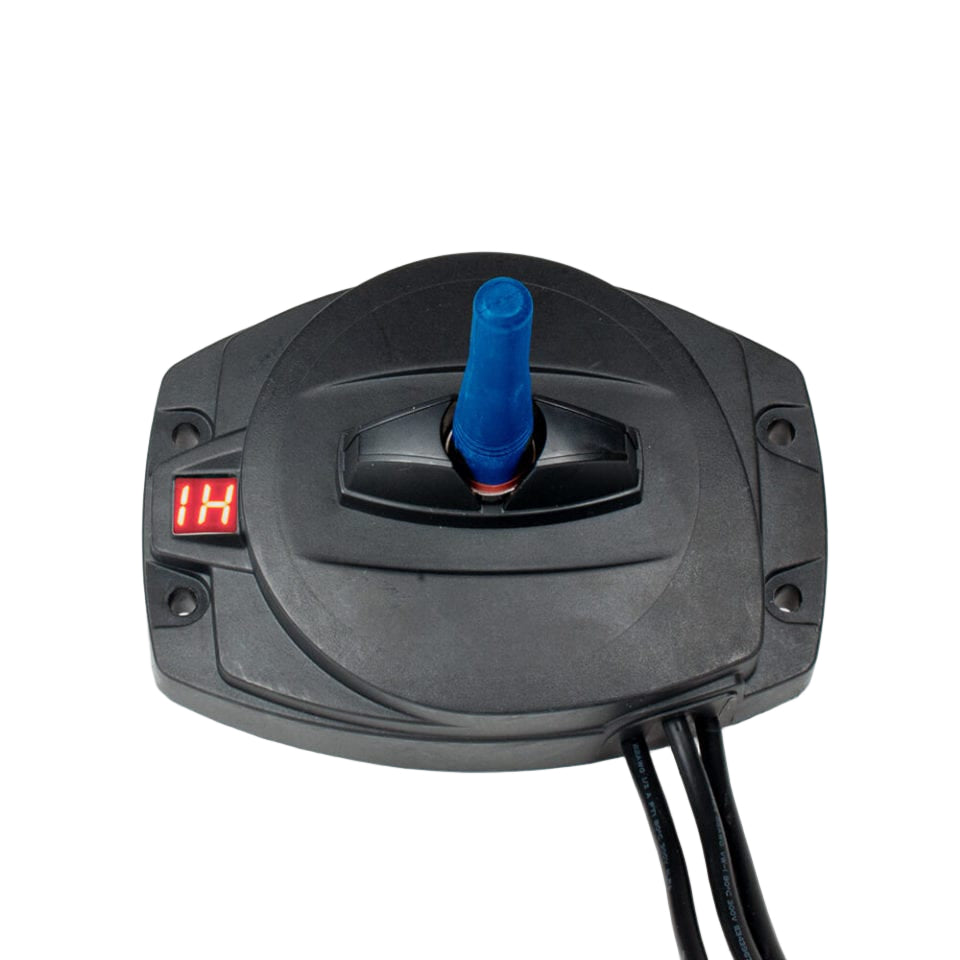

G5 Receiver CAN

The Scanreco G5 system is based on advanced microprocessor technology that copes with even the roughest of environments. These receivers are a perfect choice for hydraulically driven mobile machinery. As they run on 2.4GHz frequency, they are also a good choice for global manufacturers.

Specifications

• Protection category: IP67
• Supply voltage: 12/24 VDC
• Frequency band: 2.4 GHz
• Operational temperature: -25¡C to +70¡C / ~-15¡F to +160¡F
• Number of digital outputs: 1+2 stop functions
• Number of digital inputs: Ð
• Fieldbus interface: CANopen
• Dimensions (W x H height incl. antenna x D): 110 x 140 x 157 mm ~4.33 x 5.51 x 6.18 in
