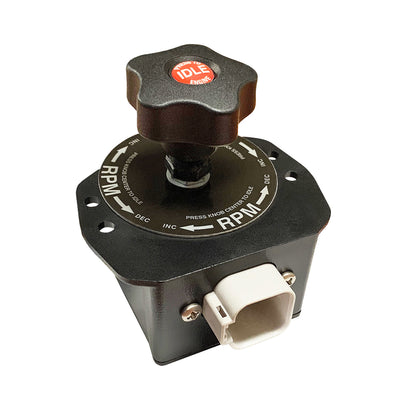

J1939 CAN Throttle Control Knob

An Affordable Solution with Four Programmable Settings

  • Provides the Look and Feel of a Traditional Throttle Knob
  • J1939 CANbus
  • IP67 Rated Enclosure

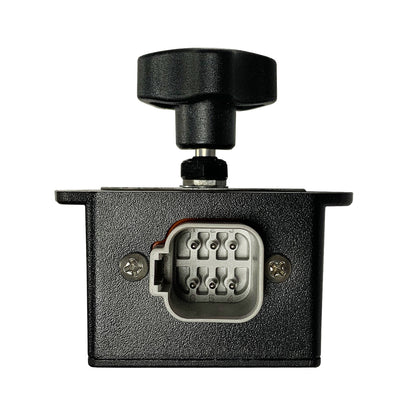

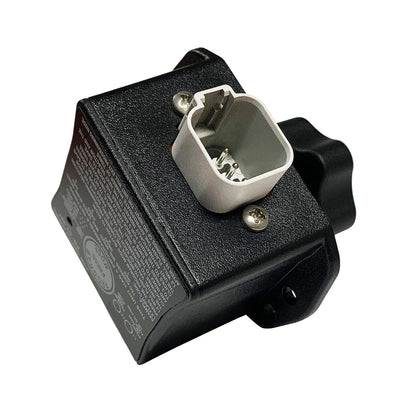

  • Deutsch DT Series Connectors
  • Two Configurable Digital
  • Inputs (N/O or N/C)
  • 5.5VDC to 36VDC Operating Voltage
  • Reverse Polarity Protection, Transient Voltage Protection, and Load Dump Protection
  • Settings are User Configurable

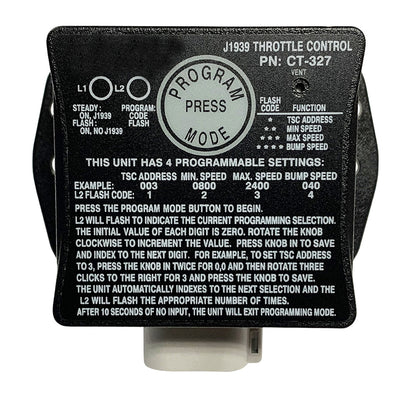

The CT-327 CAN Throttle Knob for J1939 engines provides the look and feel of a traditional throttle knob. A rugged, IP67-rated controller with a water tight, plug and play connector. Easy-to-use settings are configurable through the CT Series unit, and include:

  • ENGINE MANUFACTURER
  • TSC ADDRESS
  • MINIMUM SPEED
  • MAXIMUM SPEED
  • RAMP RATE
  • BUMP SPEED
  • RPM PER ROTATION

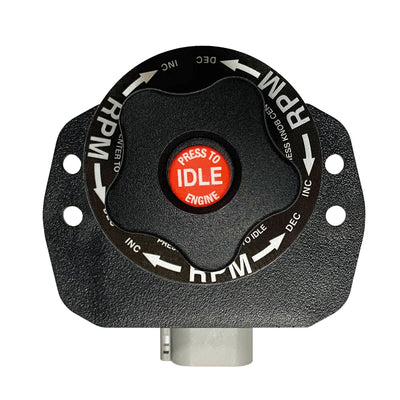

Clockwise rotation to increase speed and counter clockwise rotation to decrease speed. Each “click” of the knob changes speed by the selected BUMP SPEED. Built-in PRESS-TO-IDLE allows operator to push down on knob for immediate reduction of speed to selected MINIMUM SPEED.

Two configurable digital inputs are available to integrate throttle operation with equipment requirements. A partial list of standard digital input settings include:

  • RAMP to MINIMUM SPEED
  • RAMP to MAXIMUM SPEED
  • RAMP UP
  • RAMP DOWN
  • KNOB OFF
  • KNOB ON

Configuration of digital input settings require additional programming or a factory pre-set.
